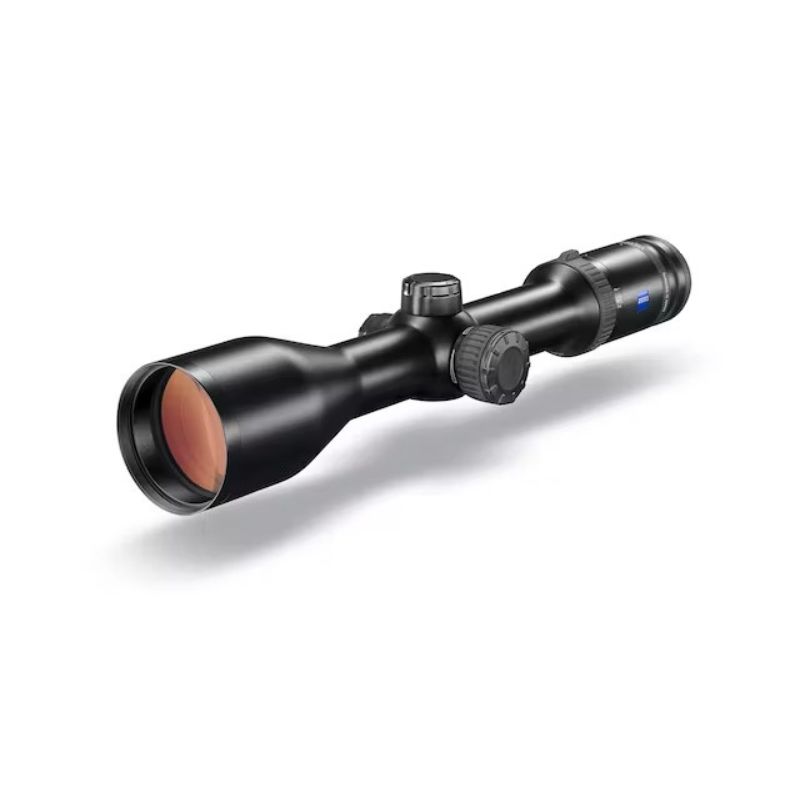

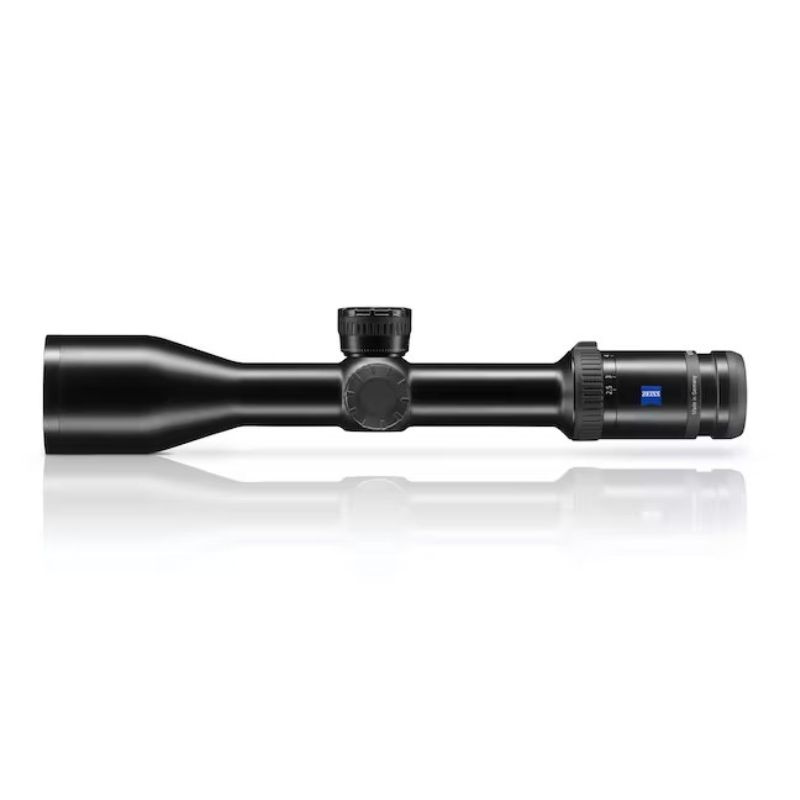

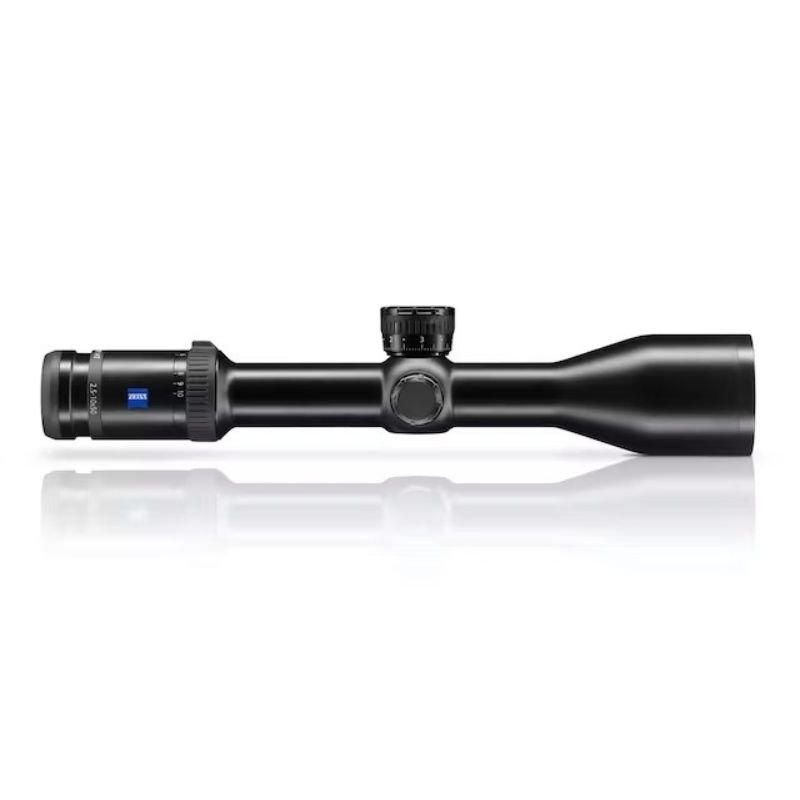

Zeiss Victory Ht 2.5-10×50

Name: Zeiss Victory Ht 2.5-10x50
Brand: Zeiss
SKU: Victory Ht 2.5-10x50

Here you find all technical data about the VICTORY HT 3-12×56 T*

Price on application — we quote against current import duty and availability.

SKU: Victory Ht 2.5-10×50 Category: Optics Brand: Zeiss

Additional information

Magnification		3 x	12 x
Effective Lens Diameter		44 mm	56 mm
Exit Pupil Diameter		14.9 mm	4.7 mm
Twilight Factors		8.5	25.9
Field of View at 100m		12.5 m	3.5 m
Subjective Viewing Angle		7.2 °	2 °
Diopter Adjustment Range		+2 \| -4 dpt
Eye Relief		90 mm
Parallax-Free		100 m
Adjustment Square at 100m		120 cm
Adjustment per Click at 100m		1 cm
Centre Tube Diameter		30 mm
Eye Piece Tube Diameter		42 mm
Objective Tube Diameter		62 mm
LotuTec®		Yes
Nitrogen Filling		yes
Water Resistance		400 mbar
Functional Temperature in °C		-25 \| +50 °C
Length		347 mm
Weight without Illuminated Reticle	Without Inner Rail	–
	With Inner Rail	–
Weight with Illuminated Reticle	Without Inner Rail	573 g
	With Inner Rail	598 g
Order numbers without Illuminated Reticle	Without Inner Rail	–
	With Inner Rail	–
Order numbers with Illuminated Reticle	Without Inner Rail	522435
	With Inner Rail	522434
Order numbers with Illumination Control	With Inner Rail	–
