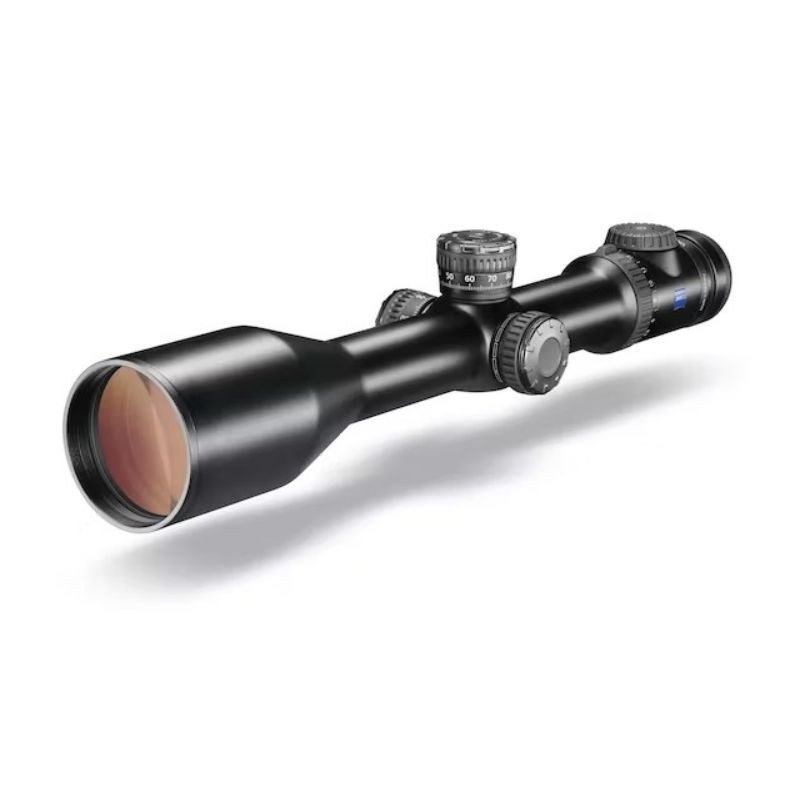

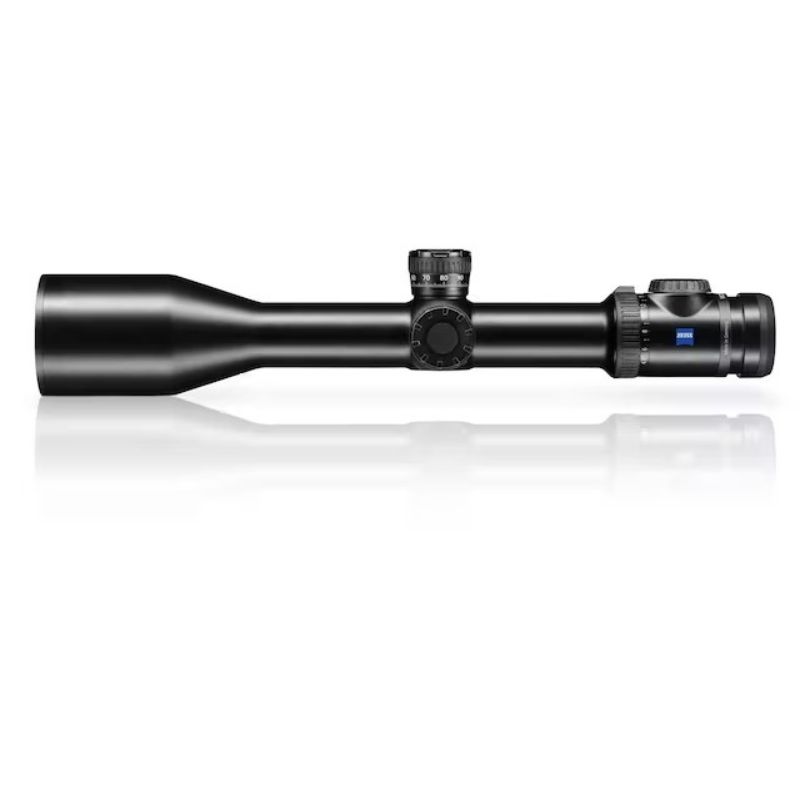

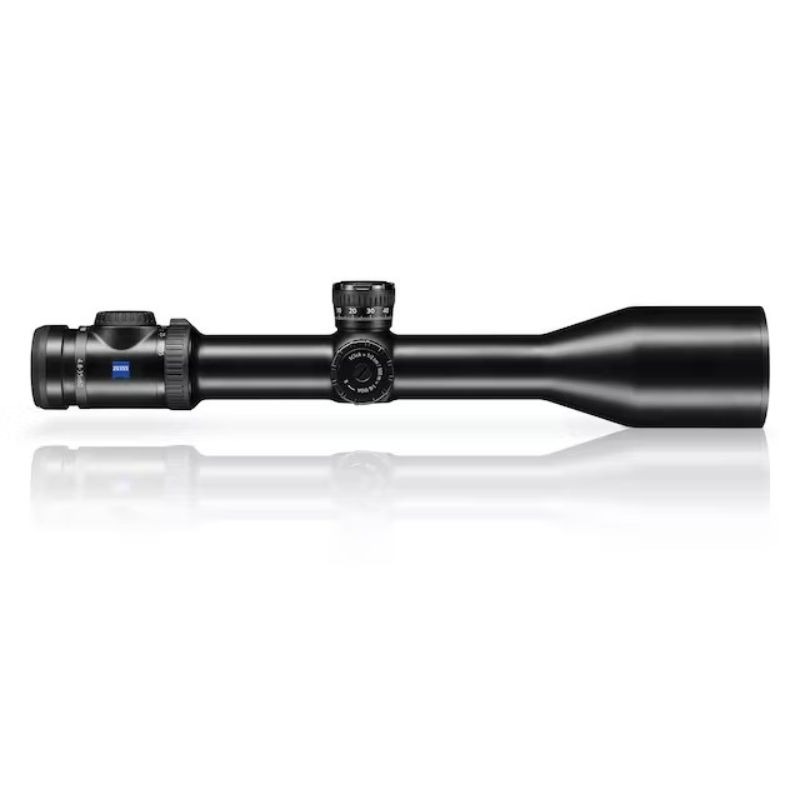

Zeiss Victory V8 4.8-35×60

Name: Zeiss Victory V8 4.8-35x60
Brand: Zeiss
SKU: Victory V8 4.8-35x60

Here you find all technical data about the VICTORY V8 2.8–20×56

Price on application — we quote against current import duty and availability.

SKU: Victory V8 4.8-35×60 Category: Optics Brand: Zeiss

Additional information

Magnification		2.8 x	20 x
Effective Lens Diameter		27.5 mm	56 mm
Exit Pupil Diameter		9.9 mm	2.8 mm
Twilight Factors		7.9	33
Field of View at 100m		15.5 m	2.1 m
Subjective Viewing Angle		8.9 °	1.2 °
Diopter Adjustment Range		+2 \| -3.5 dpt
Eye Relief		95 mm
Parallax-Free		50-∞ m
Adjustment Range Height at 100m		210 cm
Adjustment Range Lateral at 100m		135 cm
Adjustment per Click at 100m		1 cm
Centre Tube Diameter		36 mm
Eye Piece Tube Diameter		46 mm
Objective Tube Diameter		62 mm
LotuTec®		Yes
Nitrogen Filling		yes
Water Resistance		400 mbar
Functional Temperature in °C		-25 \| +50 °C
Length		350 mm
Weight without Illuminated Reticle	Without Inner Rail	–
	With Inner Rail	–
Weight with Illuminated Reticle	Without Inner Rail	830 g
	With Inner Rail	855 g
Order numbers without Illuminated Reticle	Without Inner Rail	–
	With Inner Rail	–
Order numbers with Illuminated Reticle	Without Inner Rail	522137
	With Inner Rail	522136
Order numbers with Illumination Control	With Inner Rail	–
